Harwil Q-8N / Q-8CR Flow Switch, 8 to 1900 GPM, 1 in to 10 in Pipe
SKU PFS-Q-8CR/3/3/C
Harwil Q-8N and Q-8CR Flow Switch Built for dirty water. The Harwil Q-8N (Noryl) and Q-8CR (Fortron) cover 8 to 1900+ GPM across 1 inch to 10 inch and larger pipe. A single convolute elastomeric seal is continually flushed by the working...
- Flow range
- See model configuration
- Pipe size
- See model configuration
- Body material
- Fortron
Product drawings
2 filesBuild from your operating duty
Choose the operating duty and product options. The builder identifies the published sensing configuration and matching SKU.

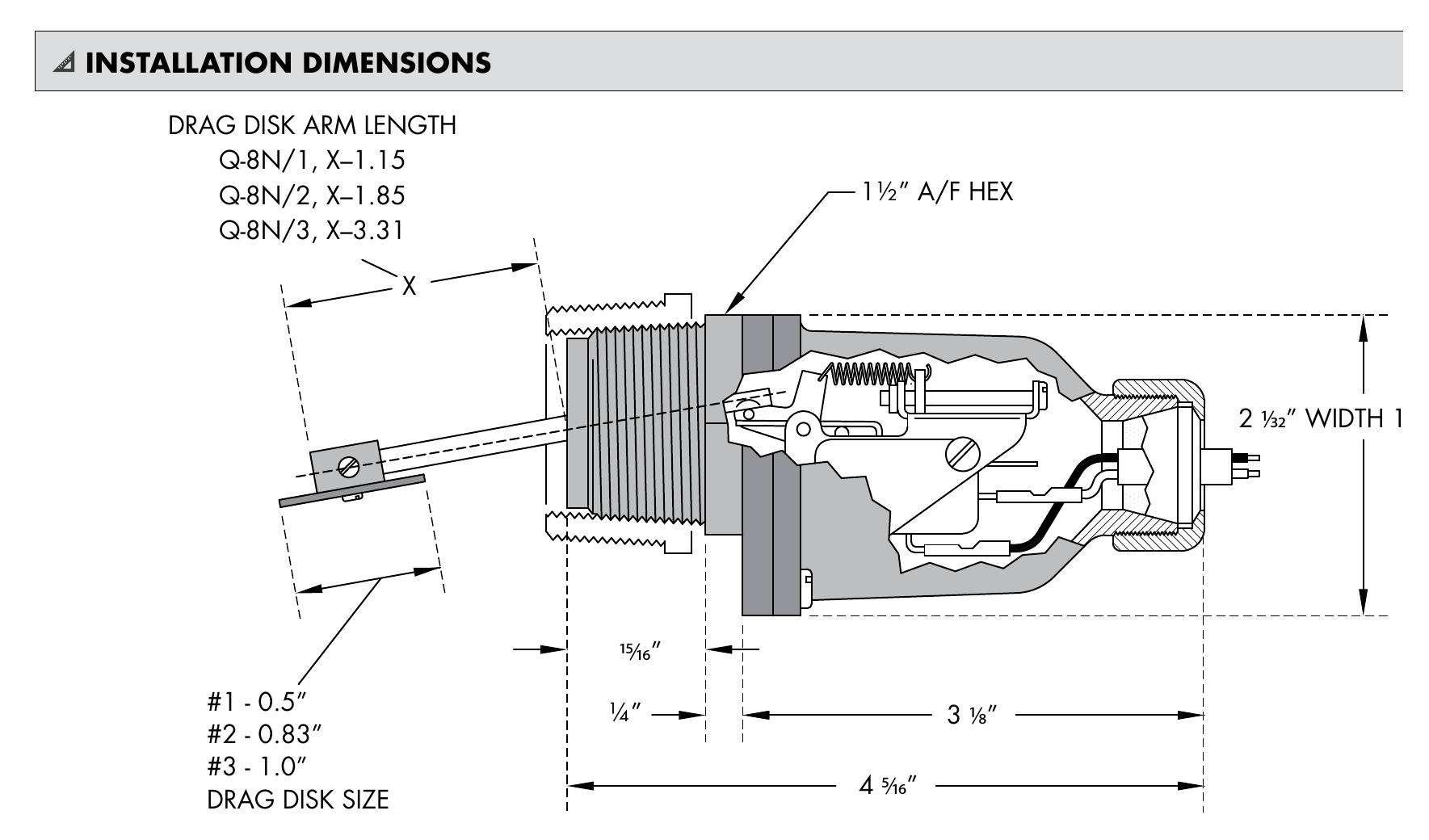

Reference drawing

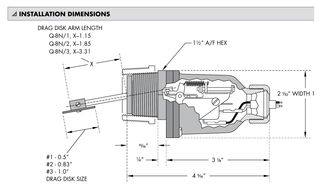

Product diagram
Click to Inspect
Reference drawing

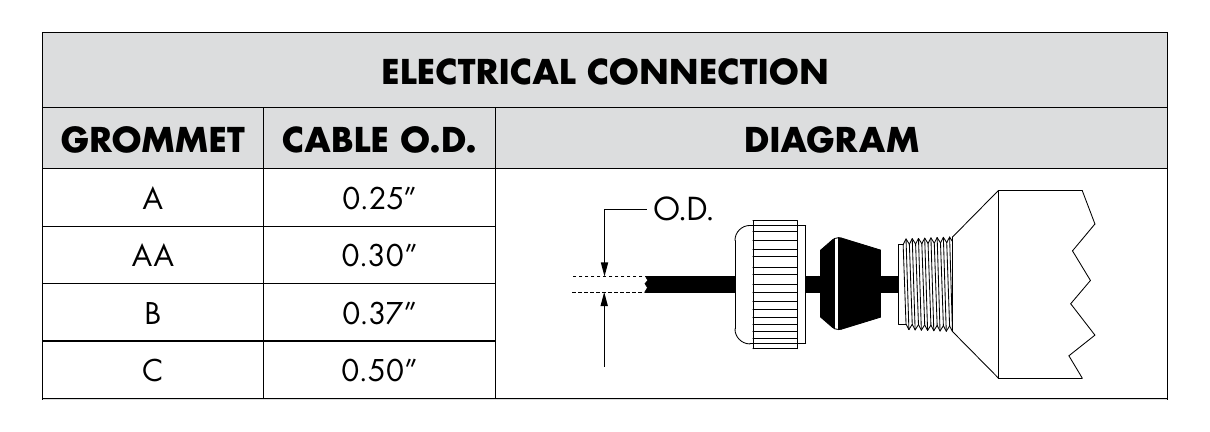

Electrical diagram
Click to Inspect
Check the manufacturer drawings while you build.
- 1Duty
- 2Sensing element
- 3Model configuration
- 4Electrical
Pipe and target flow
Use the pipe size and switch point from your system. Do not enter a component code.
Pipe sizeChoose a pipe size to see its published operating choices.
Published sensing selection
Choose only from documented operating ranges or fixed ON/OFF points.
Pipe size and operating duty determine the sensing element.
Model configuration
Choose the model or switch package that matches the application.
Electrical configuration
Choose the cataloged switch operation, cable, or conduit connection.
Technical information
Description and specifications
Harwil Q-8N and Q-8CR Flow Switch
Built for dirty water.
The Harwil Q-8N (Noryl) and Q-8CR (Fortron) cover 8 to 1900+ GPM across 1 inch to 10 inch and larger pipe. A single convolute elastomeric seal is continually flushed by the working fluid, which is what lets this unit run in highly particle contaminated liquids.
| Flow Range | 8 to 1900+ GPM |
|---|---|
| Pipe Size | 1 inch to 10 inch and larger |
| Line Pressure | 50 psig operating, 100 psig non-operating |
| Temperature | 180 F continuous |
| Q-8N Body | Noryl engineering plastic (PPO) polyphenylene oxide |
|---|---|
| Q-8CR Body | Fortron |
| Wetted Surfaces | Noryl, 316 stainless steel |
| Seal | EPDM elastomeric standard, Viton special order |
| Switch Operation | SPDT |
|---|---|
| Switching Capacity | 15 amp |
| Drag Disk Shaft | Short, Medium, Long |
| Certification | UL Component Recognized, file E85349 |
- Mild acid and base solutions
- Contaminated groundwater and rusty coolant water
- Machine cutting oils and medium slurries
- Sea water, sewage, waste water
Noryl or Fortron?
Q-8N uses Noryl (PPO). Q-8CR uses Fortron. Choose based on the chemical compatibility your fluid requires.
Why does it handle contaminated liquid?
Particle contamination resistance comes from a single convolute elastomeric seal that is continually flushed by working fluid flow.
