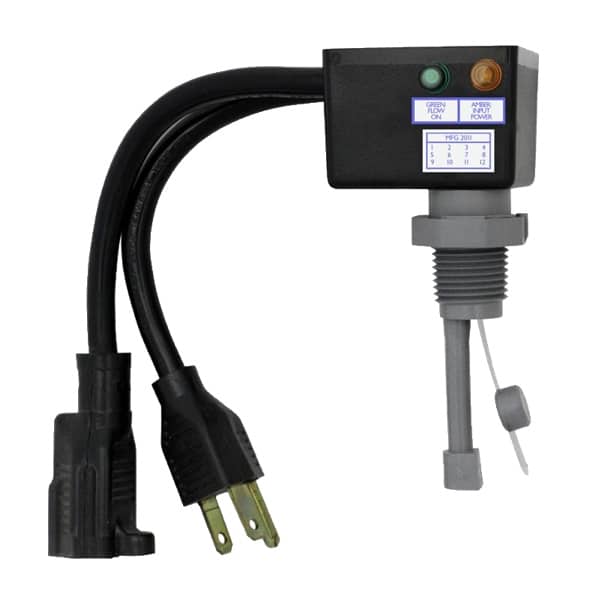

Harwil CF-112N Chemical Feed Pump Interface Module, Noryl
SKU PFS-CF-112N/7/D
$210.38
$351.33
Harwil CF-112N Chemical Feed Pump Interface Module Chemical flows when water flows. The Harwil CF-112N is a stand alone interface module in Noryl that automatically actuates a chemical feed pump when the primary bulk fluid begins to flow. It works in isolated...
- Flow range
- See model configuration
- Pipe size
- See model configuration
- Body material
- Harwil Corporation
This part is made to order. Please allow 1–2 weeks for order processing.
Technical information
Description and specifications
Harwil CF-112N Chemical Feed Pump Interface Module
Chemical flows when water flows.
The Harwil CF-112N is a stand alone interface module in Noryl that automatically actuates a chemical feed pump when the primary bulk fluid begins to flow. It works in isolated stand alone systems or as part of a larger system.
Function
| Type | Chemical feed pump interface module |
|---|---|
| Action | Actuates chemical feed pump when primary bulk fluid begins to flow |
| Use | Stand alone or as part of a larger system |
| Flow Switch | Uses Harwil Q-12 flow switch |
Materials and Fitting
| Body Material | Noryl |
|---|---|
| Included | PVC tee |
| Pipe Sizes | 3/4 inch, 1 inch, 1 1/2 inch, 2 inch |
Electrical
| Input Power | 120 VAC or 240 VAC |
|---|---|
| Output | 10A, 120 VAC / SPNO |
| Electrical Connection | Options A, B, C, D |
Compatibility
- Metering chlorine to well water for homes, ranches, farms, mines
- Chlorinating animal drinking water systems
- Bactericides for cooling tower makeup water plus pH / ORP control
- Boiler treatment additives and metal plating makeup solutions
Cross-References
CF-112N
Notes
What is the difference between CF-112N and CF-112VCR?
CF-112N is Noryl. CF-112VCR is Fortron. Choose based on the chemical compatibility your application requires.
