Harwil Q-4E Inline Flow Switch, 4 to 70 GPM, 1 in NPT, 300 psig
SKU PFS-QD-4E/4/C
Harwil Q-4E Inline Flow Switch Wide range, particle tolerant. The Harwil Q-4E is an inline flow switch covering 4 to 70 GPM in 1 inch line. Four individual drag disk options plus continuous adjustment give it a wide operating range, and it...
- Flow range
- See model configuration
- Pipe size
- See model configuration
- Body material
- Harwil Corporation
Product drawings
2 filesBuild from your operating duty
Choose the operating duty and product options. The builder identifies the published sensing configuration and matching SKU.

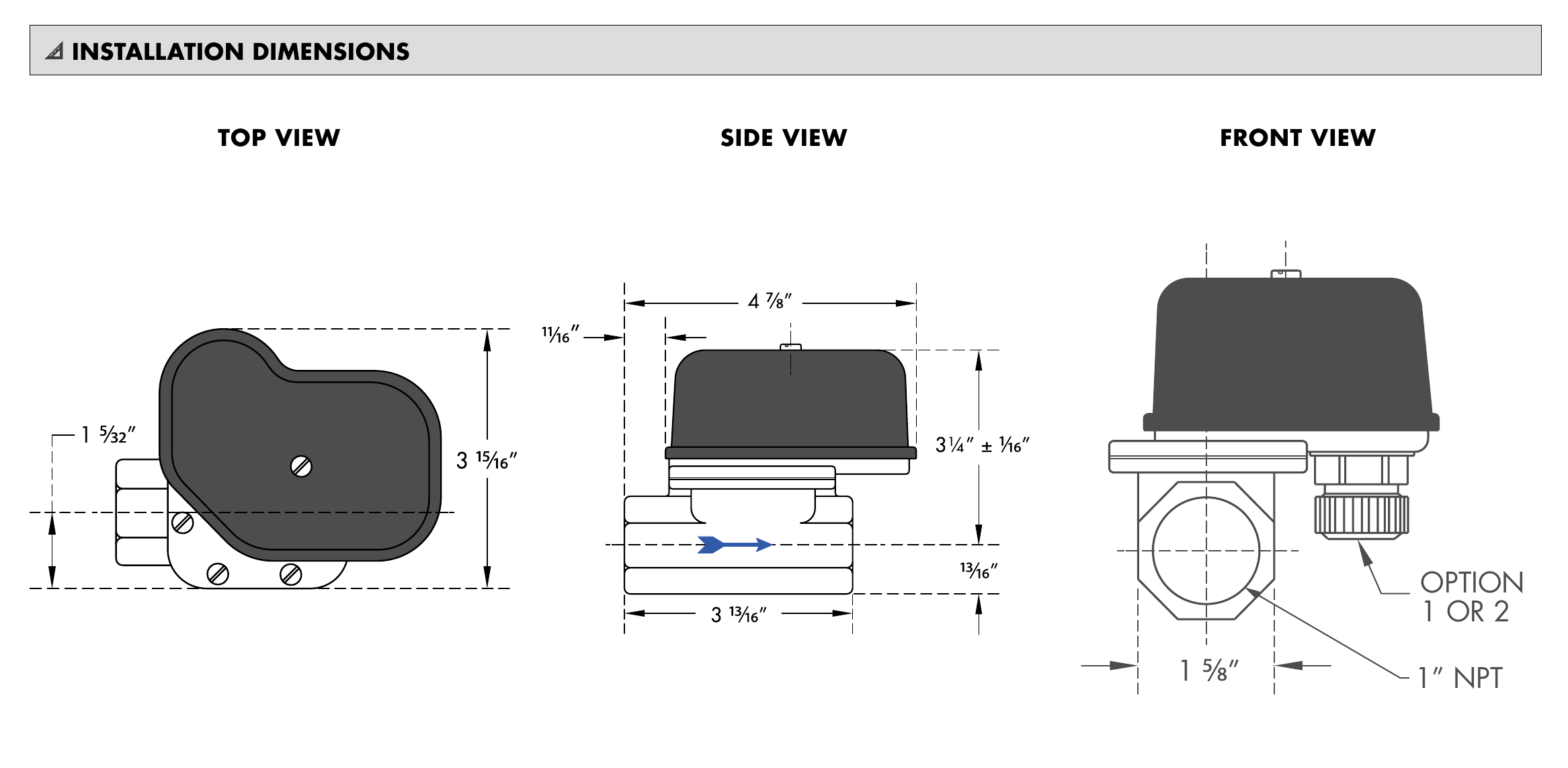

Reference drawing
Product diagram
Click to Inspect

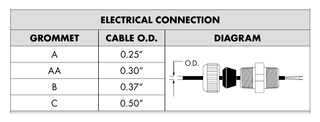

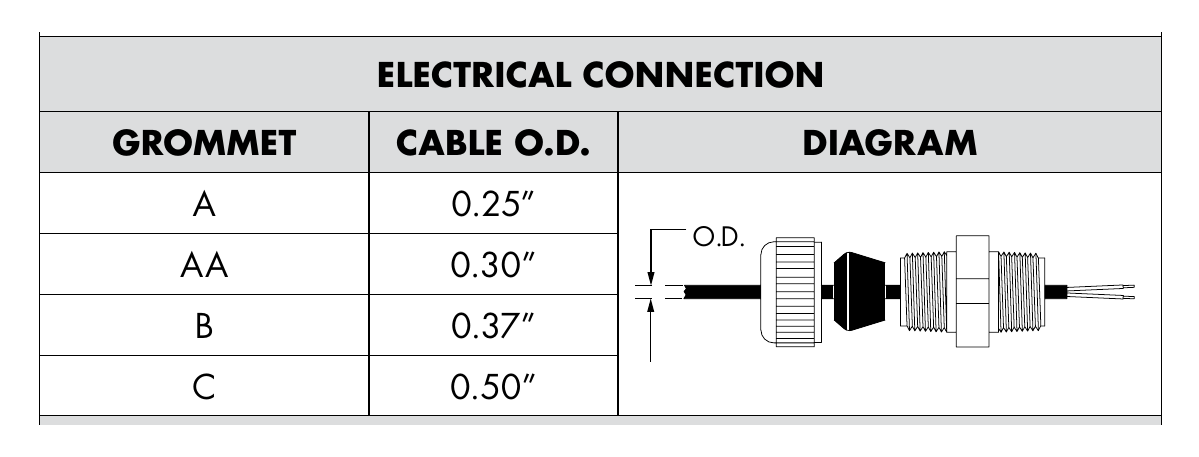

Reference drawing
Electrical diagram
Click to Inspect
Check the manufacturer drawings while you build.
- 1Duty
- 2Sensing element
- 3Model configuration
- 4Electrical
Pipe and target flow
Use the pipe size and switch point from your system. Do not enter a component code.
Pipe sizeChoose a pipe size to see its published operating choices.
Published sensing selection
Choose only from documented operating ranges or fixed ON/OFF points.
Pipe size and operating duty determine the sensing element.
Model configuration
Choose the model or switch package that matches the application.
Electrical configuration
Choose the cataloged switch operation, cable, or conduit connection.
Technical information
Description and specifications
Harwil Q-4E Inline Flow Switch
Wide range, particle tolerant.
The Harwil Q-4E is an inline flow switch covering 4 to 70 GPM in 1 inch line. Four individual drag disk options plus continuous adjustment give it a wide operating range, and it is built for use in particle contaminated fluids.
| Flow Range | 4 to 70 GPM |
|---|---|
| Line Pressure | To 300 psig |
| Temperature | 180 F continuous |
| Drag Disk Options | 4 individual options plus continuous adjustment |
| Pipe Size | 1 inch |
|---|---|
| Process Connection | NPT inline |
| Body Material | Brass |
| Switch Operation | SPDT or DPDT (QD-4E) |
|---|---|
| Switching Capacity | 15 amp (SPDT model) |
| Dry Circuit Option | Computer / PLC interface model available |
| Hazardous Area | Usable with Harwil intrinsically safe relay |
- 1 inch NPT inline installations
- Particle contaminated fluids
- Air conditioning systems
- Marine and stationary engines
Which orifice-paddle option do I need?
Four ranges are offered: 4 to 8 GPM, 6 to 20 GPM, 15 to 35 GPM, and 25 to 70 GPM. Pick the band your normal flow sits inside, then fine tune with the continuous adjustment.
