Harwil Q-10N / Q-10VCR Flow Switch, 0.7 to 1025 GPM, 1 in to 16 in Pipe
SKU PFS-Q-10VCR/18/SPDT/XX
Harwil Q-10N and Q-10VCR Flow Switch One body, enormous range. The Harwil Q-10N (Noryl) and Q-10VCR (Fortron) run from 0.7 GPM in 1 inch pipe up to 1025 GPM in 16 inch pipe. Three factory adjustable parameters, target area, target length and...
- Flow range
- See model configuration
- Pipe size
- See model configuration
- Body material
- Fortron
Product drawings
2 filesBuild from your operating duty
Choose the operating duty and product options. The builder identifies the published sensing configuration and matching SKU.
Reference drawing

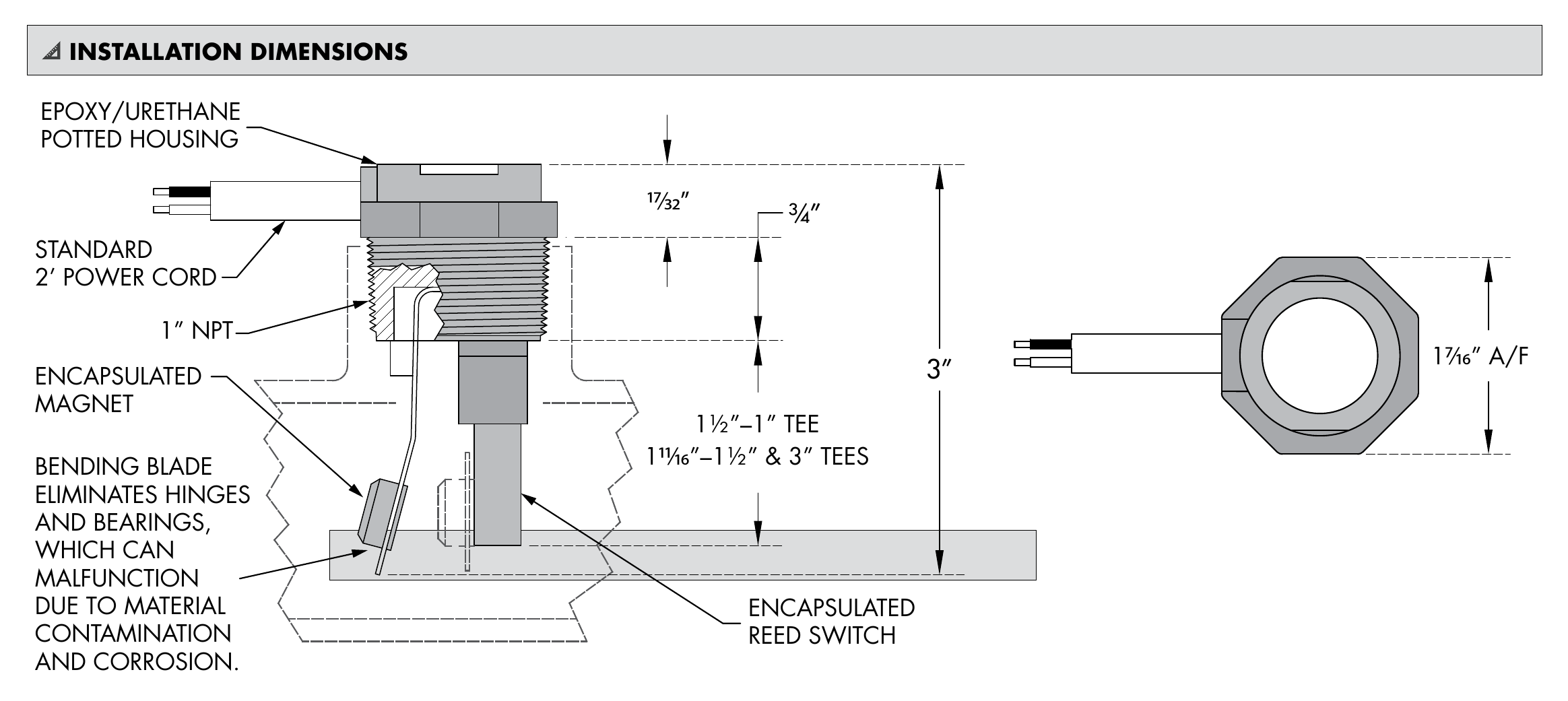

Product diagram
Click to Inspect
Reference drawing

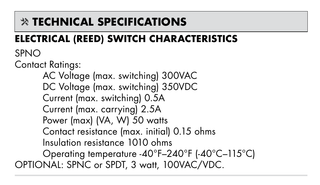

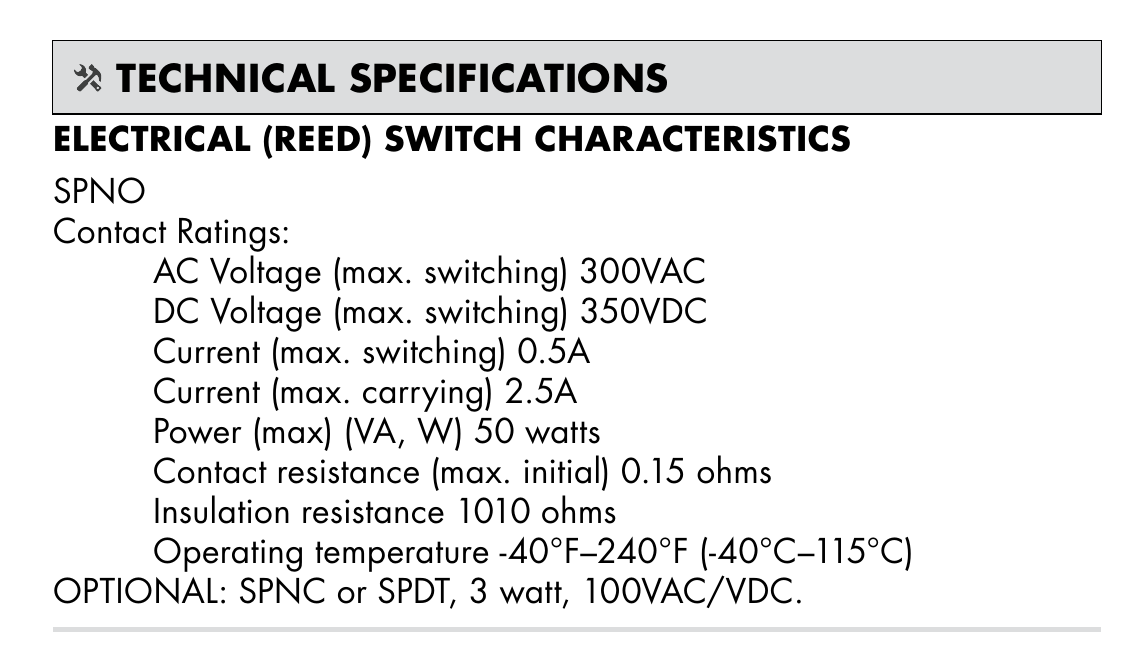

Electrical diagram
Click to Inspect
Check the manufacturer drawings while you build.
- 1Duty
- 2Sensing element
- 3Model configuration
- 4Electrical
Pipe and target flow
Use the pipe size and switch point from your system. Do not enter a component code.
Pipe sizeChoose a pipe size to see its published operating choices.
Published sensing selection
Choose only from documented operating ranges or fixed ON/OFF points.
Pipe size and operating duty determine the sensing element.
Model configuration
Choose the model or switch package that matches the application.
Electrical configuration
Choose the cataloged switch operation, cable, or conduit connection.
Technical information
Description and specifications
Harwil Q-10N and Q-10VCR Flow Switch
One body, enormous range.
The Harwil Q-10N (Noryl) and Q-10VCR (Fortron) run from 0.7 GPM in 1 inch pipe up to 1025 GPM in 16 inch pipe. Three factory adjustable parameters, target area, target length and target stiffness, are what let a single design cover that spread. It responds to fluid flow only, independent of line pressure and temperature.
| Minimum Flow | 0.7 GPM in 1.0 inch pipe |
|---|---|
| Maximum Flow | 1025 GPM in 16 inch pipe |
| Pipe Size | 1 inch and up |
| Line Pressure | 250 psig at room temperature |
| Temperature | 200 F continuous |
| Pressure Drop | Typically less than 1.0 psig at normal flow |
| Max Flow | May be five times normal flow |
| Q-10N Body | Noryl |
|---|---|
| Q-10VCR Body | Fortron |
| Paddle | 18 paddle options, 1 inch through 10 inch pipe |
| Switch Type | Reed switch, NO, NC or SPDT |
|---|---|
| Switching | 5 VDC to 240 VAC |
| Cable Options | No cable, 2, 4, 6, 8 or 10 ft |
| Certification | UL Component Recognized, file E85349 |
- Pure water, tap water, sea water, cooling tower water
- Glycol solutions, acids and bases
- Hydrocarbons, ketones, lubricating oils, gasoline, JP-4
- Plating solutions
How does one switch cover 0.7 to 1025 GPM?
Three factory adjustable parameters, target area, target length and target stiffness, are set to match the pipe size and flow rate you order.
NO, NC or SPDT?
All three reed switch configurations are available. NO closes on flow, NC opens on flow, and SPDT gives you both contacts.
