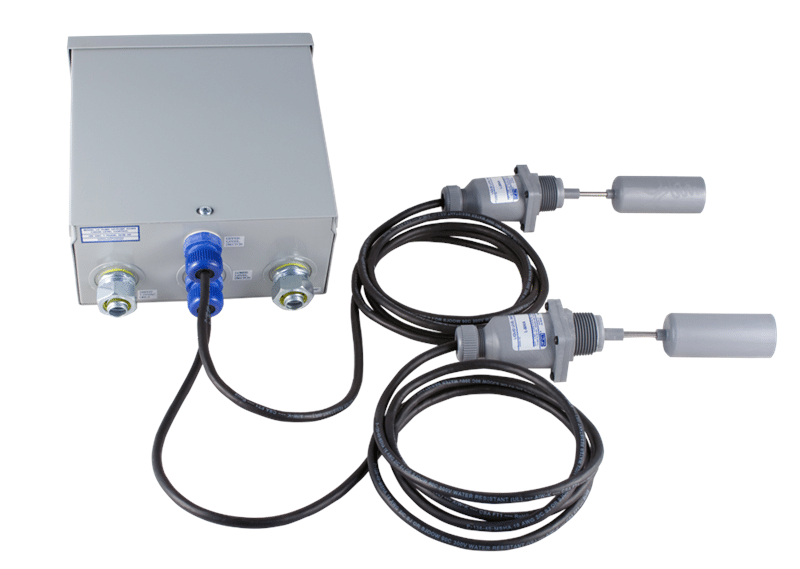

Harwil LC-1 Liquid Level Controller, NEMA 4, 30 Amp DPST Motor Contactor
SKU PFS-LC-1
$425.80
$711.09
Harwil LC-1 Liquid Level Controller Fill it or empty it, automatically. The Harwil LC-1 pairs any two Harwil liquid level switches with an electronic control module in a weather resistant box to automatically fill or empty a tank or vessel. The module...
- Flow range
- See model configuration
- Pipe size
- See model configuration
- Body material
- Harwil Corporation
This part is made to order. Please allow 1–2 weeks for order processing.
Technical information
Description and specifications
Harwil LC-1 Liquid Level Controller
Fill it or empty it, automatically.
The Harwil LC-1 pairs any two Harwil liquid level switches with an electronic control module in a weather resistant box to automatically fill or empty a tank or vessel. The module design eliminates false starts caused by turbulent wave action.
Enclosure
| Rating | NEMA 4 weather resistant |
|---|---|
| Conduit Fittings | Two standard 1/2 inch seal tight flexible |
| Terminal Strip | Color coded with ring, labeled |
Electrical
| Input Power | 120 or 240 VAC 50/60 Hz models |
|---|---|
| Motor Contactor Output | 30 amp DPST |
| Pump Capacity | 1 1/2 hp at 120 VAC, 3 hp at 240 VAC |
| Secondary Output | 10 amp SPDT relay |
| Control Module | Electronic latching / unlatching |
System
| Level Switches | Any two Harwil liquid level switch models |
|---|---|
| Fluids | Clean or contaminated, including water, sea water, sewage |
Compatibility
- Automatic tank fill systems
- Automatic tank empty systems
- Clean or contaminated fluids
- Water, sea water, sewage, thin slurries
Cross-References
LC-1
Notes
Does it include the level switches?
The LC-1 is designed around any two Harwil liquid level switch models, which are selected to match your fluid and mounting.
